Ryobi1+ Wall Hanger
Snap Fit Hanger fro Ryobi Tools
Intro

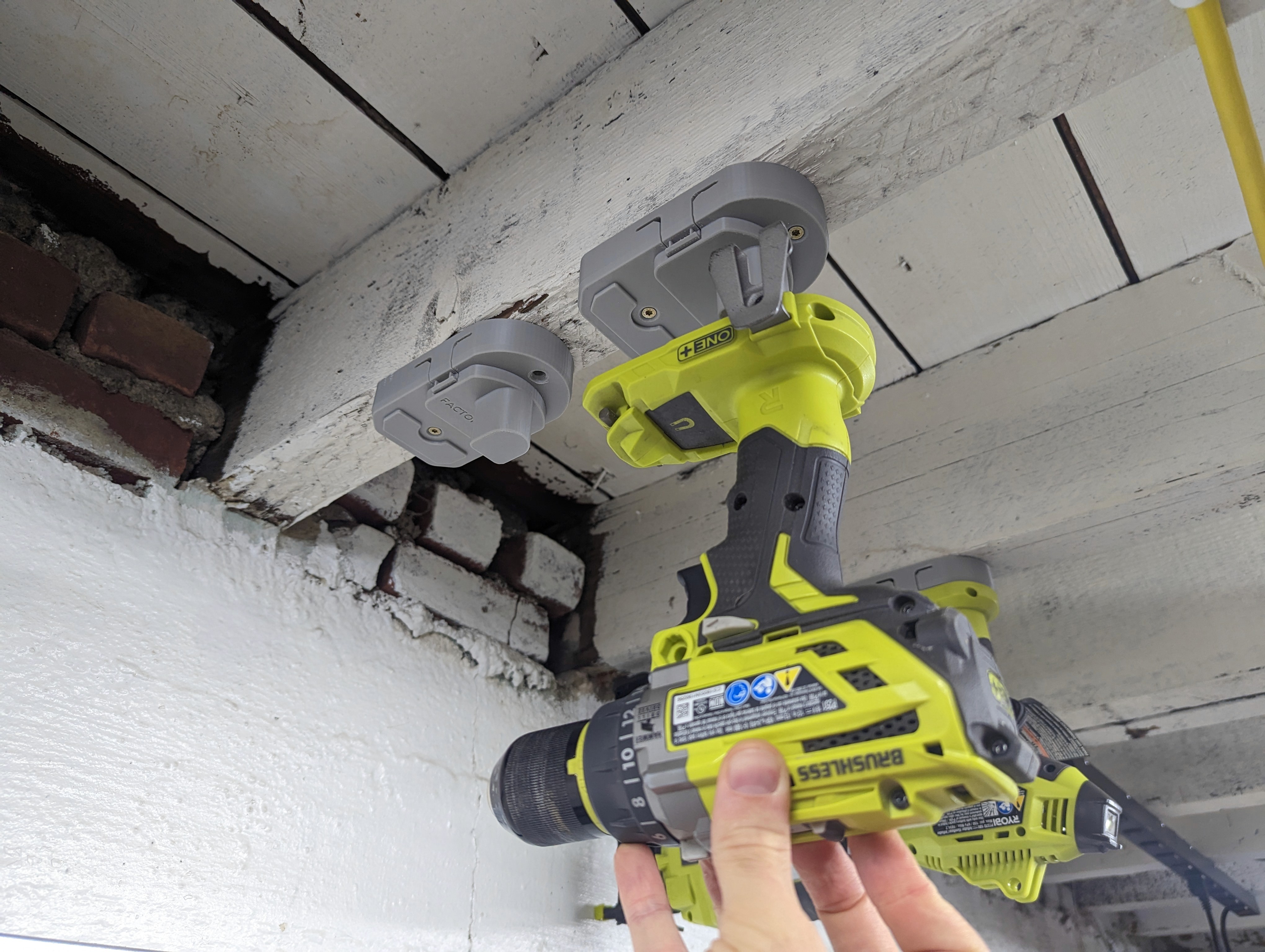

Tired of cluttered workbenches? This 3D-printed ceiling-mounted tool holder keeps your Ryobi tools organized, visible, and easy to access—perfect for maximizing workspace efficiency!
Concept Origin
This project was born out of necessity. Ryobi tools are great, but they take up a lot of space and don’t come with a good storage solution. I wanted to get them off my workbench while keeping them visible and accessible—because if I can’t see my tools, I forget I have them (out of sight, out of mind). The solution? A simple, 3D-printed ceiling-mounted holder that keeps my tools organized and within reach.
Design & Development

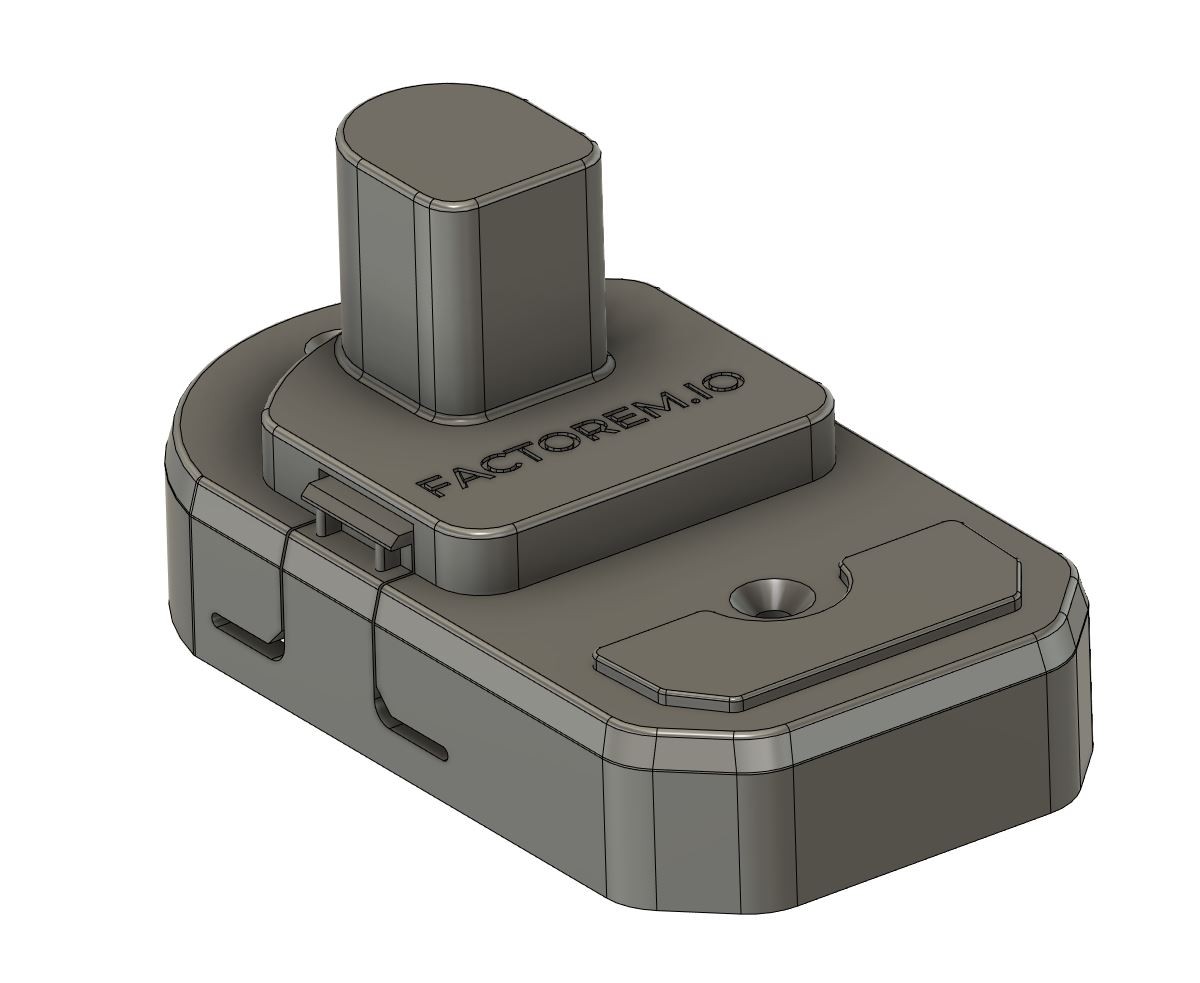

The design mimics the way Ryobi batteries connect, but instead of using compression springs, I opted for a torsion spring. This approach worked surprisingly well on the first try, thanks to copying the critical geometry and the forgiving nature of torsion springs. To ensure durability, I added bracing to make the spring act as a torsion mechanism rather than a cantilever. I also included a motion limiter—a small shelf that stops the spring from over-flexing, preventing damage and providing a natural stopping point when releasing the tool. These small details make the design functional and user-friendly.
Prototype & Build
This is a single-piece design, so assembly is as simple as removing supports and screwing it into place. For best results, I recommend printing with a material like ABS or PETG for better creep resistance, as these parts are functional and need to hold up over time.
Final Result
The tool holder works exactly as intended, keeping tools organized, visible, and off the workbench. It’s a simple, effective solution for anyone looking to maximize workspace efficiency. The project is complete, but I’m always open to ideas for updates—feel free to reach out on Discord to share your thoughts or ask for help!
